보증 기간 5년
150 ~ 1,000 bp size의 fragment 획득 가능
동시에 6 ~ 16개 샘플을 한 번에 처리 (튜브 별 상이)
20 uL ~ 2 mL의 용량 처리 처리 가능 (튜브 별 상이)
온도 조절 장치 기본 장착으로 시료의 일정한 온도 유지 가능
작동시 발생하는 소음 방지를 위한 방폐 상자 불필요
초음파가 샘플에 간접적으로 전달되어 샘플 변성 방지 (ACT, Adaptive Cavitation Technique)
높은 재현성과 빠른 속도
모든 플랫폼에 사용 가능한 프로토콜 제공
경제적인 소모품 비용
다수의 논문에 수록되어 연구자들로부터 인정받은 성능

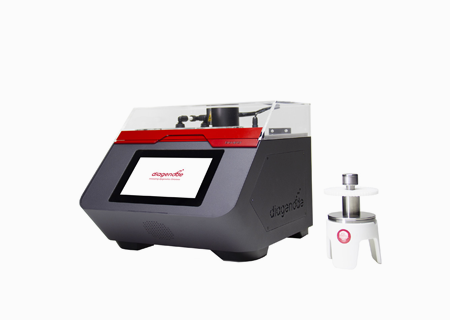

PRODUCT | BIORUPTOR® PICO |
DESCRIPTION | Best suited for ChIP-seq and NGS |
KEY APPLICATIONS | sample preparation |
Chromatin shearing 200 bp – 1kb | |
DNA shearing 150 bp – 1 kb | |
RNA shearing 200 bp – 1 kb | |
FFPE nucleic acid extraction | |
Cell lysis and tissue disruption | |
Mass spectrometry | |
Protein aggregations | |
THROUGHPUT | 16 samples (for 0.2 ml tube holder) |
12 samples (for 0.65 ml tube holder) | |
6 samples (for 1.5 ml tube holder) | |
6 samples (for 15 ml tube holder) | |
RECOMMENDED VOLUMES | 20 – 100 μl (0.2 ml Bioruptor tubes) |
100 μl (0.65 ml Bioruptor tubes) | |
100 – 300 μl (1.5 ml Bioruptor tubes) | |
300 μl – 2 ml (15 ml Bioruptor tubes) | |
TEMPERATURE CONTROLLED | √ |
- DNA/RNA shearing
- Chromatin shearing
- Cell and tissue disruption
- FFPE DNA extraction
- Next generation sequencing
- Other biological applications: mitochondria disruption, cell dissociation, plat cell transformation
- Other chemical and pharmaceutical applications: emulsification, homogenization etc.
DNA Shearing-bioruptor pico [다운로드]
Spatial tissue proteomics of FFPE specimen using the Bioruptor® for sample preparation [다운로드]
최적의 NGS 라이브러리 준비에서 가장 중요한 요소 중 하나는 시퀀싱 할 DNA의 품질입니다. 신뢰할 수 있는 NGS 결과를 얻으려면 먼저 DNA가 적절한 사이즈로(sequencing platform에 따라 다름)로 일관성있게 shearing되어야 합니다. Bioruptor는 NGS workflow에 필수적인 우수한 수율, 크기 및 일관성을 제공합니다.
RNA Sequencing은 알려지지 않은 transcriptome에 대한 정보를 얻을 수 있는 아주 정확하고 민감도 높은 method입니다. 최상의 cDNA synthesis과 sequencing을 위해서는 reverse transcription 전에 RNA가 적절한 크기로 단편화되어야합니다. Bioruptor는 편향적이지 않은 RNA shearing 을 제공하며 고품질 NGS 결과를 보장합니다.
생화학 실험에서는 조직이나 포유류, 효모 및 박테리아 세포에서 단백질을 추출해야하는 경우가 많습니다. 고품질의 단백질을 높은 수율로 얻는 것은 PAGE, Western blot, 질량 분석 또는 단백질 정제와 같은 downstream protein characterization에 중요합니다. Bioruptor를 이용하면, 초음파 처리 기반으로 세포를 파쇄하게 됩니다. 이 방식은 한 번에 조직 및 배양 세포를 효율적으로 파쇄하고 균질화할 수 있어 식별 가능한 펩티드 및 단백질 수를 크게 향상시킵니다.
Protein seeding and aggregations
Amyloid-like aggregates (amyloid fibrils)의 형성은 정상적인 proteome의 기능을 방해하고 신경 퇴행성 질환의 독성에 기여합니다. Amyloid 형성 및 세포 증식 특성 연구에서, 초음파 처리는 새로운 응집체 성장을 위한 아밀로이드 섬유 분해에 쓰입니다. 이 때 아밀로이드 섬유가 분해되면서 응집체 형성이 촉진 되고, seed가 준비되게 됩니다. Bioruptor는 초음파 처리 및 온도 처리를 통해 seeding material을 표준화하고 생성하는 데 많은 이점이 있습니다.
Applications | Bioruptor® Pico | Bioruptor® Plus |
---|---|---|
NGS DNA shearing | Excellent | Good |
Chromatin shearing | Excellent | Excellent |
NGS RNA shearing | Excellent | Good |
DNA extraction from FFPE | Excellent | Excellent |
Cell and tissue disruption for protein extraction (for mass spectrometry or other applications) | Excellent | Excellent |
Cell and tissue disruption for RNA extraction | Less suitable | Excellent |
Bacterial cell lysis | Good | Excellent |
Compound solubilization | Good | Excellent |
Liposome size reduction | Good | Excellent |
Protein aggregation | Excellent | Excellent |
Technical specification | ||
Temperature control | Excellent | Excellent |
Low noise level | Excellent | Good |
Small footprint | Excellent | Good |
Fast processing* | Excellent | Good |
Shearing volume | 20 µl -2 ml | 50 µl -20 ml |
Throughput | Up to 16 samples per run | Up to 12 samples per run |
